LITHIOLIME

Function of Contamination Control Assembly The Lithiolime removes

• carbon dioxide and acid gases by means of a chemical reaction with lithium hydroxide (LiOH),
• odours and off-gassing products by means of activated charcoal fi lters and catalysts, and

particulates and aerosols by means of a particle filter. The fi lter also prevents LiOH dust from leaving the filter

APPLICATIONS

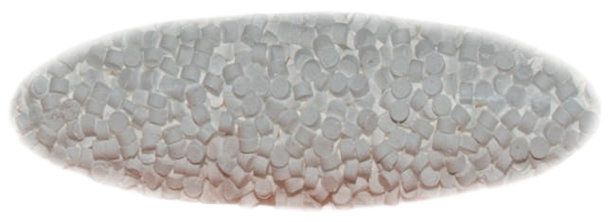

Diving grade Lithiolime absorbs carbon dioxide ensuring a breathable atmosphere is maintained.

It is optimised for the removal of carbo dioxide from recirculated air/nitrox/heliox in rebreathers, saturation dive systems and submarines.

• Military rebreathers
• Submarines

FEATURES of LI0H cartridges

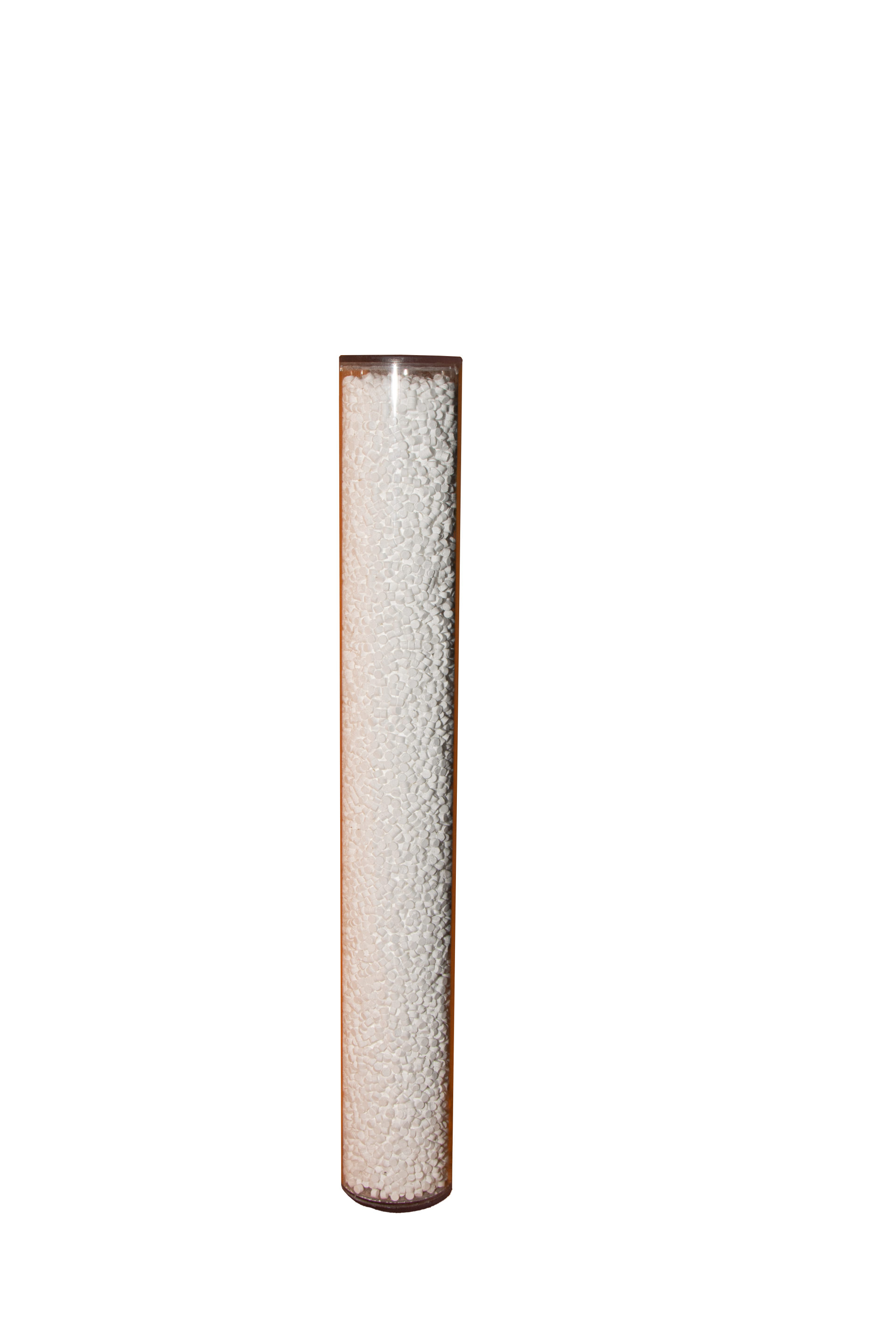

A Li0H cartridge consists of a stainless steel housing containing the fi lterbag inside and a plastic cover on each end of the housing.

For transport and storage it is sealed in an evacuated compound foil and is packed in a light-weight plastic container.

Proper evacuation of the foil ensures the correct handling of cartridges and full performance.

LI0H Cartridge Specificatione

C02 loading capacity at 0.5 vol-%                     740 I C02 / cartridge

C02 loading capacity at 1.0 vol-%                      800 I C02 / cartridge

Dimension of (packed) cartridge                       425 mm x 215 mm x 72 mm

Weight of packed cartridge                                  4.0 kg

Volume of packed cartridge                                3.6 dm

Storage time                                                              5 years
