OXYGEN CANDLE
For Submarine Emergency Systems (DISSUB Applications)**
- System Overview

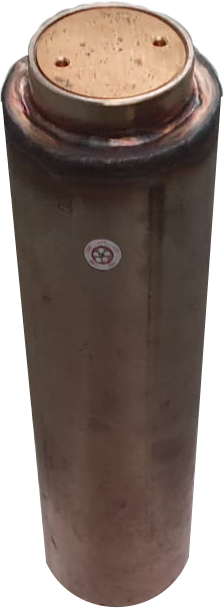

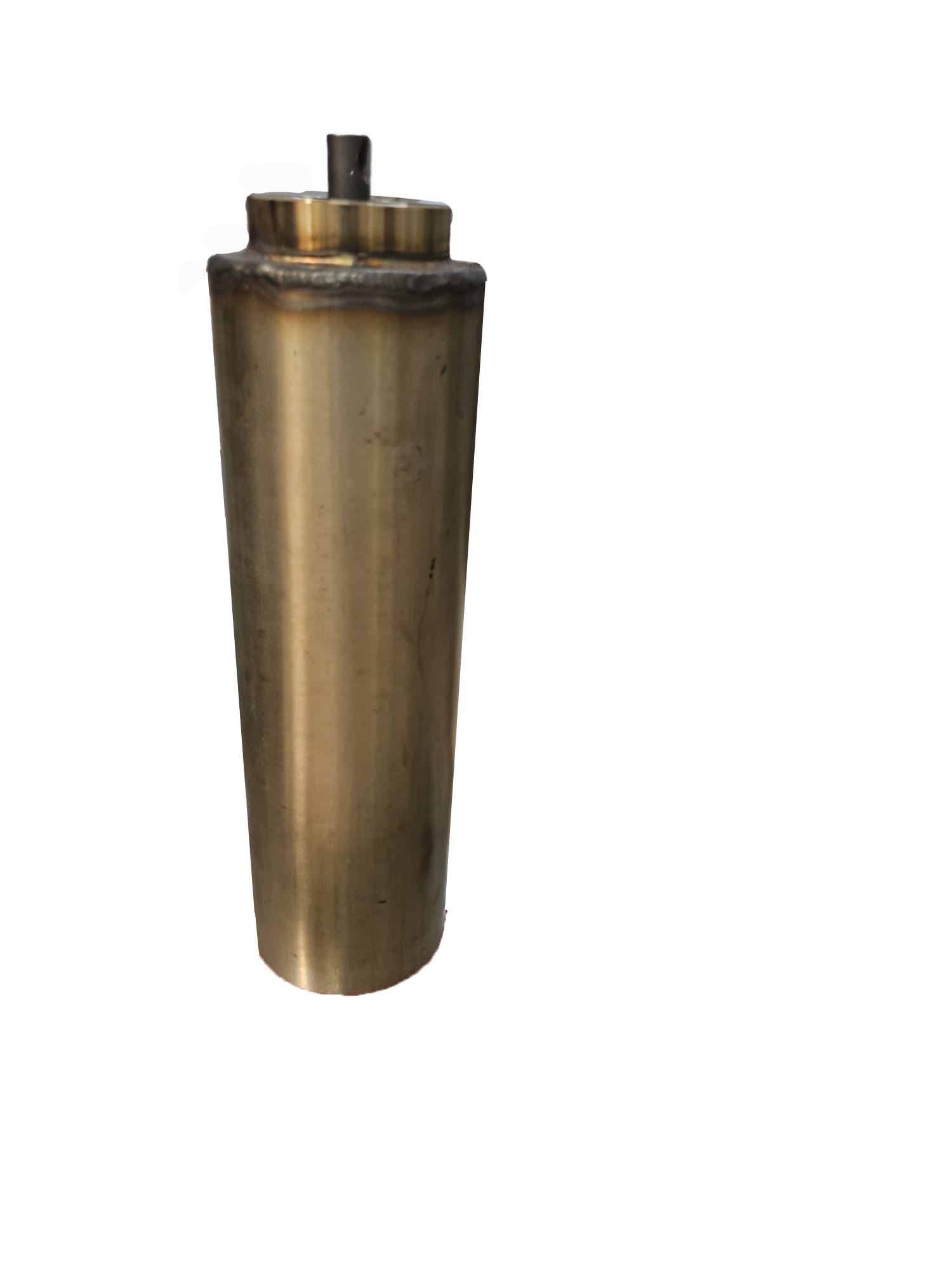

The O2‑ Oxygen Candle is a self‑contained solid‑state oxygen generator designed for critical‑environment life support.
Through controlled thermal decomposition of a stabilized oxygen‑rich compound, the system delivers continuous high‑purity O₂ even under severe operational conditions:
- DISSUB (Distressed Submarine) scenarios
- Submarine compartments in blackout
- Hyperbaric chambers and rescue capsules
- Mobile or fixed life‑support stations
- Key Features
✔ Fully Autonomous Operation
No external power source required.
Operates reliably even in complete electrical failure.
✔ High‑Purity Oxygen Output
≥ 99% O₂ purity maintained throughout the activation cycle.
Integrated catalysts ensure zero CO / zero CO₂ residuals, compliant with life‑support standards.
✔ Controlled and Safe Ignition
- Shock‑proof pull‑starter
- Anti‑tamper safety seal
- Visual thermal‑status indicator
✔ MIL‑SPEC Construction
- Marine-grade coated steel body
- IP68 sealing
- Designed for corrosive, humid, and hyperbaric conditions
- Performance Specifications
Parameter Typical MIL‑SPEC Value
O₂ Output Rate 120–200 L/min (depending on model)
Operational Duration 20–60 minutes
O₂ Purity ≥ 99%
Max External Temperature < 80°C (integrated insulation)
Ignition Delay < 2 seconds
Operational Life (Storage) > 12 years
- DISSUB Applications
🚨 Submarine Emergency Atmosphere Management
Designed for restoring breathable atmosphere during:
- Deep‑sea submarine failures
- NATO DISSUB operational protocols
- Long‑duration rescue waiting cycles
